Car Exhaust Manifold: What It Is, How It Works, And Why Your Engine Needs One

Have you ever looked under the hood of your car and felt like you were staring into a complex labyrinth of metal and tubes? Many of these parts work silently in the background, but they are essential for your vehicle's health and performance.

One of the most critical yet lesser-known heroes in this system is the car exhaust manifold. This component is fundamental to your engine’s operation, acting as the crucial first step in managing your car's exhaust. If you want to understand your vehicle better, learning about the exhaust manifold is a fantastic place to start. It’s a key piece of the puzzle that ensures your engine runs smoothly, efficiently, and powerfully.

This guide will explore everything you need to know about the exhaust manifold, from its basic function and importance to the different types you might encounter. We will delve into how it works, what it's made of, and the signs to watch for if it starts to fail. Understanding this component can empower you to make better decisions about vehicle maintenance and potential performance upgrades.

What is a Car Exhaust Manifold and What Does It Do?

At its core, a car exhaust manifold is an assembly of pipes or tubes that serves a very specific and vital purpose within your car's engine system. It is an integral component of the engine that plays a crucial role in its efficient functioning. The design and condition of your car exhaust manifold directly influence your vehicle's overall performance.

Defining the Exhaust Manifold's Primary Role

The main function of the car exhaust manifold is to collect the hot, high-pressure exhaust gases from each of the engine’s cylinders after combustion has occurred and channel them into a single pipe. Think of it as a funnel. Each cylinder in your engine produces exhaust, and the car exhaust manifold has individual inlets, or runners, that connect to each cylinder's exhaust port. These runners then merge into a single outlet, known as the collector, which directs the combined gases into the rest of the exhaust system, starting with the exhaust pipe. As the very first component in the exhaust system, the car engine exhaust manifold is bolted directly to the engine's cylinder head. This important part ensures that the by-products of combustion are safely and efficiently removed from the engine. Its proper function is therefore essential for your engine to operate correctly.

Is an Exhaust Manifold the Same as an Intake Manifold?

While their names sound similar, the intake and car exhaust manifolds are two distinct components with opposite jobs; you can think of them as the "yin and yang" of your engine's respiratory system. The intake manifold is responsible for the engine's "inhalation" process. It takes the carefully mixed air and fuel and distributes it evenly to each of the engine's cylinders for combustion to take place.

On the other hand, the car exhaust manifold handles the "exhalation". After the fuel and air mixture burns in the cylinders to create power, it collects these leftover burnt gases—the exhaust—and directs them away from the engine to be processed by the rest of the exhaust system. While a vehicle has both an intake and an car exhaust manifold, it is the latter that deals with the extremely hot gases produced by combustion, making its durability and design critical. It's important not to mistake one for the other, as they serve different but equally vital functions.

How the Exhaust Manifold Impacts Engine Performance

The car exhaust manifold does more than just get rid of exhaust fumes; it plays a crucial role in optimizing your car's overall efficiency and performance. The design of a car exhaust manifold has a significant influence on the engine’s torque characteristics and power output. A well-designed version helps to improve engine output, enhance fuel efficiency, and contribute to the overall performance of your vehicle. By ensuring that exhaust gases can exit the cylinders smoothly and with minimal resistance, it allows the engine to "breathe" more effectively. This efficient expulsion of gases is directly linked to how much power the engine can produce. Therefore, this component is not just a passive pipe but an active contributor to your engine's health and capabilities.

How Does a Car Exhaust Manifold Work? A Step-by-Step Guide

The operation of a car exhaust manifold might seem straightforward, but it’s a finely tuned process that occurs in four main steps to ensure the engine runs efficiently. Each step is crucial for managing the flow of gases and optimizing engine power. The entire process is a perfect example of engineering designed for maximum efficiency.

Step 1: Collecting Hot Exhaust Gases

The entire process begins the moment combustion is complete inside the engine's cylinders. As your engine runs, the mixture of fuel and air ignites, pushing the piston down and creating power. Immediately after, the exhaust valve in the cylinder head opens, allowing the by-products of that combustion—extremely hot and highly pressurized exhaust gases—to be pushed out. The car exhaust manifold, being directly linked to the engine cylinders, is perfectly positioned to collect these gases as they are expelled. This is its first and most fundamental job.

Step 2: Merging Gas Flow into a Single Channel

Once the gases enter the individual runners of the car exhaust manifold, the next critical process is merging and channeling. The number of pipes or runners on the car exhaust manifold directly corresponds to the number of cylinders in your engine. For example, a four-cylinder engine will have a manifold with four runners. Its design ensures that the exhaust flow from each of these pipes merges smoothly into a single, larger outlet called the collector. This action of combining and channeling the flow helps to equalize the pulses of exhaust fumes coming from different cylinders at different times, creating a more consistent and steady stream of gas moving into the exhaust system. This function is vital for a smooth-running engine.

Step 3: Optimizing Backpressure for Better Efficiency

Another key function of the car exhaust manifold is to optimize something called backpressure. As the exhaust gases try to leave the cylinders, they can encounter a form of resistance, which is known as backpressure. Too much backpressure is bad for an engine because it makes it harder for the pistons to push the exhaust gases out, which robs the engine of power. A well-designed car exhaust manifold helps to minimize this resistance, promoting an easier and more consistent flow of gases out of the internal combustion chamber. By reducing backpressure, it helps improve the engine's power generation and overall efficiency, allowing it to perform at its best.

Step 4: Tuning for Enhanced Power and Torque (Advanced Designs)

This final step, tuning, does not apply to every car exhaust manifold but is a crucial feature in performance-oriented designs. This role is specific to manifolds that have a "tuned length design". In these advanced systems, the lengths of the individual runners are carefully calculated and optimized. This specific tuning uses the physics of the gas pulses to help pull, or scavenge, the exhaust gases out of the cylinders more effectively. This action enhances the car’s revving capability and can lead to significant improvements in both power and torque output. A tuned car exhaust manifold is a popular upgrade for those looking to maximize their engine's performance potential.

Why Your Car's Exhaust Manifold is So Important

The car exhaust manifold is far more than a simple pipe; it’s a conductor for your engine's orchestra, ensuring every part works in harmony. Its importance extends across several key areas of your vehicle's operation, from raw power to environmental responsibility. A properly functioning car exhaust manifold is essential for optimal engine performance, fuel efficiency, and emissions control.

Enhancing Engine Performance and Power

One of the most significant reasons the car exhaust manifold is so important is its direct impact on engine performance. By improving the flow of exhaust gases, a performance-oriented version can lead to a noticeable increase in both power and torque output. It features designs like larger diameter tubes and smoother bends, which help reduce restrictions and backpressure. This improved flow allows the engine to "breathe" more efficiently, as it can expel exhaust gases more effectively, leading to better combustion and overall performance.

Improving Fuel Efficiency

Your car exhaust manifold also plays a role in how much fuel your vehicle consumes. When an engine can expel exhaust gases efficiently with low backpressure, it doesn't have to work as hard. This reduction in effort means the engine operates more smoothly and requires less fuel to produce the same amount of power. By optimizing the outflow of these unburnt gases, the car exhaust manifold contributes to better fuel efficiency for the vehicle, saving you money at the pump over time.

Controlling Harmful Emissions

In today's environmentally conscious world, the role of the exhaust manifold in car emissions control is more important than ever. Its main function is to direct the hot exhaust fumes from the engine cylinders into the vehicle's exhaust system, where the catalytic converter is located. The catalytic converter needs to reach a high operating temperature to effectively convert harmful pollutants into less harmful substances. The car exhaust manifold plays an important part in this by delivering those hot gases quickly, especially during the engine's start-up phase. A properly functioning car exhaust manifold is the first step in ensuring your vehicle meets emissions standards.

Reducing Engine Noise

While the muffler does the heavy lifting in quieting your car, the car exhaust manifold also plays a role in minimizing exhaust noise. It helps to route the explosive gas pulses from the cylinders in a controlled manner. You can easily tell when a car exhaust manifold has a problem, such as a crack or a bad gasket, because the exhaust becomes significantly noisier. This makes the component a key part of maintaining a comfortable and quiet driving experience.

Managing Under-Hood Heat

The temperatures of exhaust gases leaving the engine can be incredibly high. The car engine exhaust manifold is subject to extreme thermal stress as it's the first component to handle these hot fumes. Because it gets so hot, most are fitted with a heat shield to protect other sensitive components under the bonnet, like wiring and plastic parts, from heat damage. Some high-performance manifolds even use ceramic coatings for insulation. This heat management function is critical for the long-term health of your entire engine bay.

Common Materials Used for Car Exhaust Manifolds

The choice of material for a car exhaust manifold is critical, as it must withstand extreme temperatures, vibrations, and corrosive gases. Different materials offer a unique balance of durability, weight, cost, and performance. The type of material often depends on whether it's for a standard passenger vehicle or a high-performance machine.

Types of Car Exhaust Manifolds: Which One is Right for You?

The type of exhaust manifold on car models depends on many factors, including the engine's design, performance goals, and budget. From standard-issue parts to high-tech performance upgrades, there is a wide variety to consider. Each type offers a different set of advantages and considerations.

Cast Iron Manifolds (OEM Standard)

These are the most common type of car exhaust manifold found in standard passenger cars and non-performance-oriented engines. They are widely used by original equipment manufacturers (OEMs) because they are known for their durability, heat resistance, and cost-effectiveness. While they are heavy and don't offer the performance gains of other types, they are reliable and ensure easy replacement and compatibility with stock components. For everyday driving, a cast iron car exhaust manifold provides satisfactory and long-lasting service.

Stainless Steel Manifolds

A stainless steel car exhaust manifold is a significant upgrade over cast iron. They are commonly used in performance vehicles and as aftermarket upgrades. Their primary advantage is superior resistance to corrosion and rust, which makes them highly durable. They can also handle higher temperatures and may provide performance gains due to improved exhaust flow. Stainless steel is also lighter than cast iron, which helps reduce overall vehicle weight for better handling. While they are more expensive, they offer a great balance of performance, durability, and aesthetics.

Tubular Manifolds (Headers)

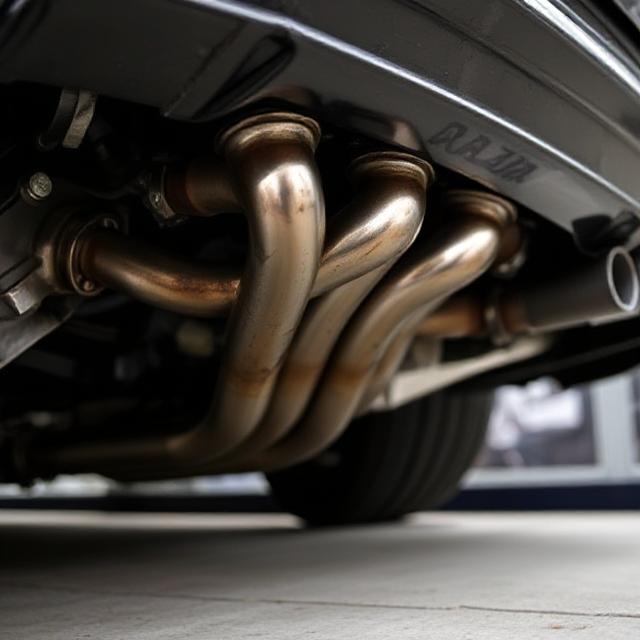

Often called "headers," a tubular car exhaust manifold is a high-performance option popular in racing and performance applications. They are constructed using individual, precisely bent tubes for each cylinder instead of a single cast piece. This design is specifically engineered to optimize exhaust gas flow, which significantly reduces backpressure and can lead to substantial power gains. They are typically made from lightweight materials like stainless steel. However, this type of car exhaust manifold is more expensive, and installation can be more complex, sometimes requiring modifications to other components and engine tuning to achieve the full benefits.

Integrated Manifolds

A modern innovation, the integrated car exhaust manifold is a design where the manifold is cast as a single piece with the engine's cylinder head. This design is used by manufacturers to improve exhaust gas flow, reduce overall engine weight, and save space in the engine compartment. The optimized flow can result in enhanced engine performance and better fuel efficiency. The main consideration for this type of component is that aftermarket availability is limited, and repairs can be more complex and costly since the entire cylinder head might be involved.

Performance Manifolds

This category represents any car exhaust manifold specifically designed to maximize engine performance. These manifolds feature highly optimized tube lengths, larger diameters, and specially designed collectors to dramatically improve exhaust flow and increase power and torque output. They often produce a more aggressive and sporty engine sound, which enhances the driving experience. As with tubular headers, a performance car exhaust manifold typically comes at a higher cost and may require professional installation and engine tuning to ensure it works correctly without causing issues.

Signs of a Bad or Failing Exhaust Manifold

Because the car exhaust manifold endures extreme heat cycles and vibrations, it can eventually fail. Over time, it can be subjected to thermal expansion and contraction that may lead to cracks or leaks. Being able to recognize the symptoms of a bad car exhaust manifold can save you from more costly repairs down the road.

Loud Engine and Exhaust Noises

This is by far the most common and easily diagnosed symptom. If your car exhaust manifold has a crack, a hole, or a failed gasket between it and the engine, hot exhaust gases will leak out before they reach the rest of the exhaust system. This leak creates a loud ticking or hissing sound, especially when the engine is cold or during acceleration. The exhaust will become significantly noisier than usual.

Decreased Performance and Fuel Economy

A leaking car exhaust manifold disrupts the carefully balanced system your engine relies on. This leak can affect the air-fuel ratio and reduce backpressure in an uncontrolled way, which will negatively affect the engine's performance. You might notice symptoms like engine misfiring, rough idling, reduced power, poor acceleration, and a noticeable drop in fuel economy. It is important to get these issues fixed as soon as possible to restore your car's performance.

Burning Smell from the Engine Bay

If a crack in your car exhaust manifold is large enough, the escaping hot gases can come into contact with other components in the engine bay. This is dangerous because these gases are hot enough to melt plastic parts, wiring insulation, and other materials. If you notice a strange burning smell coming from under the hood, it could be a sign of a leaking car exhaust manifold and should be inspected immediately.

Visible Cracks or Leaks

Sometimes, you can diagnose a bad car exhaust manifold with a simple visual inspection. After the engine has completely cooled, you may be able to see physical cracks on the surface of the manifold. These cracks are a result of material fatigue from countless cycles of heating up and cooling down. You might also see soot or black marks around the area where the manifold connects to the cylinder head, which indicates a leaking gasket.

Customizing Your Car's Exhaust Manifold

For automotive enthusiasts, customizing a car exhaust manifold is a popular way to gain a performance edge and a unique aesthetic. Custom manifolds are specifically designed to optimize engine performance, reduce emissions, or even improve the car's sound. The performance increase is often most noticeable in high-end and racing vehicles.

Why Customize an Exhaust Manifold?

The primary reason to install a custom car exhaust manifold is to enhance performance. By optimizing the lengths of the runners and the design of the collector, you can help your car attain higher RPMs and increase its torque and power output. This kind of optimization allows you to maximize your engine's efficiency and sensitivity, tailoring its performance characteristics to your specific driving goals.

Tuned Length Runners

"Tuned length" refers to a design where the length of each pipe on the car exhaust manifold is precisely calculated. This engineering creates a resonance effect within the exhaust system that helps to scavenge, or pull, exhaust gases out of the cylinders at certain engine speeds. Automobiles with a tuned-length car exhaust manifold often experience enhanced torque and power, particularly in the higher RPM ranges.

Equal Length vs. Unequal Length Runners

When customizing a car exhaust manifold, you can choose between equal length and unequal length runners, and the choice depends on your desired engine characteristics.

● Equal Length: In this design, the exhaust gases from each cylinder travel the exact same distance to reach the collector. This synchronization ensures they arrive at the same time, which minimizes interference and optimizes performance by quickly and smoothly channeling the gases into the exhaust pipe.

● Unequal Length: Here, the runners have varying lengths. While scavenging the exhaust gases is not as straightforward as with equal lengths, this design can be tailored for specific goals, such as helping the car reach higher RPM bands or producing a distinct exhaust note.

Frequently Asked Questions (FAQ)

Do custom car manifolds really affect car performance?

Yes, a custom car exhaust manifold can significantly enhance a car's performance. By optimizing the design of the runners and collector, these manifolds can help the car achieve higher RPMs and increase its torque and power output. The improved exhaust flow allows the engine to breathe better, resulting in more efficient combustion. However, these performance gains are typically more noticeable in high-performance and racing vehicles than in standard passenger cars.

Where is the car exhaust manifold on a car?

The car exhaust manifold is located under the car's hood, where it is connected directly to the side of the engine's cylinder head. It consists of a series of pipes that convey exhaust gases away from the engine cylinders. In cars with inline engines (where cylinders are in a single row), there is one car exhaust manifold. In cars with a 'V' arrangement engine (like a V6 or V8), there are two car exhaust manifolds—one for each bank of cylinders.

How do you know if a car exhaust manifold is defective?

There are several tell-tale signs of a defective car exhaust manifold. The most common symptoms include a significant increase in engine noise (often a ticking or hissing sound), engine misfiring or rough idling, poor fuel economy, and a noticeable reduction in the engine's power and acceleration. Upon a visual inspection, you might also be able to see physical cracks or leaks on the manifold itself, which would confirm a problem.

What is the difference between a car exhaust manifold and a header?

The term "header" is another name for a tubular car exhaust manifold. While all headers are car exhaust manifolds, not all car exhaust manifolds are headers. A standard car exhaust manifold, like one made from cast iron, is a single, heavy cast piece. A header, in contrast, is fabricated from individual steel tubes that are bent and welded together to optimize flow. Headers are considered a performance upgrade because their design is superior for reducing backpressure and increasing power.

Is it expensive to replace a car exhaust manifold?

The cost to replace a car exhaust manifold can vary widely. The price depends on several factors, including the make and model of your vehicle, the material of the replacement manifold, and local labor rates. A standard cast iron car exhaust manifold is relatively cheap to produce, while a stainless steel or tubular header will be much more expensive. Additionally, the installation can sometimes be complex and may require modifications, which can add to the labor cost. It is always best to get a quote from a trusted mechanic.
