Car Exhaust Manifold: Its Working Principles and Custom Processes

Have you ever wondered what gives a performance car its distinctive growl or where a significant portion of its power originates?

The answer often lies in a crucial but frequently overlooked component: the Car Exhaust Manifold. This essential part is fundamental to achieving optimal Engine Performance. But what is it, how does it handle scorching Exhaust Gas, and how can its design be perfected through modern Customization and Design?

Understanding the manifold is the first step to unlocking an engine's potential. Its design dictates how efficiently Exhaust Gas exits the engine, which directly impacts factors like Backpressure. The choice of Manifold Materials (Cast Iron, Stainless Steel) and the precision of its Manufacturing, using methods like Die Casting or CNC Machining, are central to this entire process.

What is a Car Exhaust Manifold?

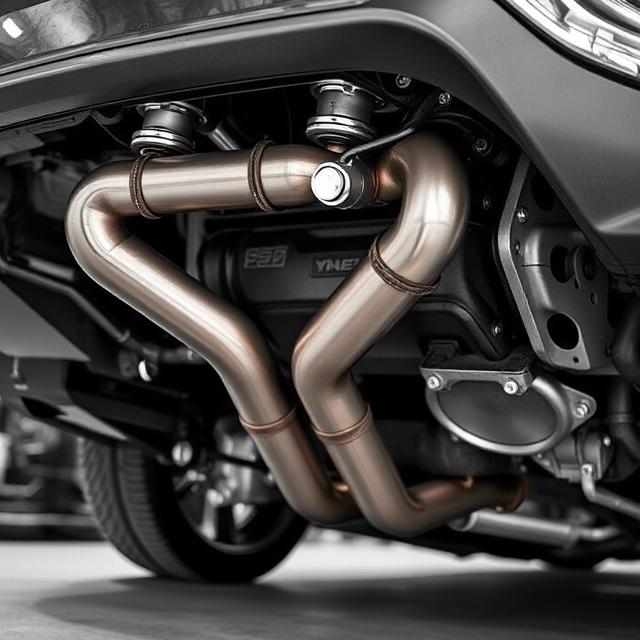

At its core, the Exhaust Manifold is the very first component in a vehicle's Exhaust System. Bolted directly to the engine's cylinder head, its primary job is to act as a funnel, collecting hot, high-pressure gases from multiple cylinders and channeling them into a single pipe. This pipe then leads to the rest of the Exhaust System, including the Catalytic Converter and muffler.

To appreciate its role, consider its counterpart: the Intake Manifold. While the intake brings an air-and-fuel mixture into the engine, the exhaust manifold is responsible for exhaling spent gases. The synergy between these two is vital. An efficient exhaust process allows the engine to inhale a fresh charge more easily, directly benefiting power and responsiveness. Any inefficiency in the manifold creates a bottleneck, limiting the entire system's potential.

How Does an Exhaust Manifold Work？

The operation of an Exhaust Manifold is a complex dance of pressure, heat, and flow. The process begins the instant an exhaust valve opens, releasing a violent burst of hot gas. The manifold's individual tubes, or runners, capture this energy. From there, the gases are merged in a section called the collector. How smoothly this merging occurs is a critical design factor that influences turbulence and resistance.

This resistance is known as Backpressure. While a tiny amount can be beneficial in some niche applications, high Backpressure chokes the engine, forcing it to work harder to expel gas and robbing it of Horsepower and Torque. The manifold's design—including the diameter and length of its runners—is the primary tool for optimizing this pressure.

Advanced designs go a step further by using a phenomenon called Exhaust Scavenging. As a high-pressure gas pulse travels down a runner, it creates a low-pressure wave behind it. A "tuned" manifold uses carefully calculated runner lengths to time this wave, using it to help suck the exhaust from the next cylinder in the firing order. This sophisticated level of Engine Tuning provides a significant performance boost. High-performance Aftermarket Parts, especially tubular Headers, are engineered specifically to perfect this process.

Different Materials for Fabricating Car Manifolds

The choice of material is a critical decision in the Manufacturing process. It must withstand immense heat and constant vibration while being formable into complex shapes. This selection directly impacts durability, weight, cost, and performance.

Manufacturing Techniques for Custom Exhaust Manifold Components

Creating a high-quality manifold, especially a custom one, requires advanced Manufacturing techniques. The chosen method depends on the material, design complexity, and production volume.

Die Casting

Die Casting is where molten metal is forced into a mold under high pressure. It’s the standard method for producing OEM cast iron manifolds due to its speed and cost-effectiveness in high volumes. It allows for complex, single-piece designs that are perfect for standard vehicles but offers less performance potential than other methods.

CNC Machining

CNC Machining is a computer-controlled process that precisely cuts material from a solid block. For manifolds, it is essential for achieving the tight tolerances needed for high performance. It's used to create perfectly flat flanges for a leak-proof seal and to "port" the inside of the runners—enlarging and smoothing them to improve airflow and reduce Backpressure.

3D Printing

Metal 3D printing is a revolutionary technique for prototyping and ultra-high-performance applications. It builds a part layer by layer from metal powder, allowing for incredibly complex internal geometries that are impossible to make with other methods. This technology enables the ultimate in Customization and Design for top-tier motorsport teams.

Customization and Design Considerations

Upgrading from a stock manifold opens up a world of performance possibilities. Customization and Design focuses on manipulating gas flow to achieve specific goals, whether it’s maximizing Horsepower, broadening the Torque curve, or creating a specific sound.

Tuned Lengths

The length of the runners is a critical element of Engine Tuning. Long-tube Headers use long primary runners to create a powerful scavenging effect at low-to-mid RPMs, which is ideal for boosting Torque for street driving. Short-tube headers, conversely, are tuned for high RPMs, making them perfect for motorsports where peak Horsepower is the goal.

Precision Milling and Port Machining

Maximum performance requires eliminating all restrictions. Port matching, done with CNC Machining, is the process of modifying the manifold's openings to perfectly match the engine's exhaust ports. This creates a smooth, uninterrupted path for gas to flow, reducing turbulence and improving power.

Equal Length vs. Unequal Length

In an equal-length design, every runner has the exact same length. This provides the most efficient scavenging and the highest performance potential but is complex and expensive to build. Unequal-length designs are easier to manufacture and fit into tight engine bays. While less efficient, they produce the distinctive, burbling "rumble" famous on certain engines, making them a design choice for both cost and acoustics.

Conclusion

From the humble cast iron unit on a family car to the gleaming steel Headers on a race car, the Car Exhaust Manifold is far more than a simple pipe. It is a sophisticated component that dictates how well an engine can breathe. Its design governs Engine Performance by controlling the complex flow of hot gases and managing critical forces like Backpressure. Through careful material selection and advanced Manufacturing, engineers can unlock an engine's true potential, making the manifold a key opportunity for performance enhancement.

Frequently Asked Questions (FAQ)

What is the main difference between an exhaust manifold and headers?

An Exhaust Manifold is typically a single, heavy cast-iron piece designed for durability and low cost. Headers are performance Aftermarket Parts made from individual steel tubes welded together. Their design uses longer, smoother runners to reduce Backpressure and improve scavenging, resulting in more Horsepower and Torque.

What are the common signs of a failing or cracked manifold?

The most common sign is a loud ticking noise from the engine, especially when cold, which may fade as the engine warms up. Other signs include the smell of exhaust fumes in the cabin, a visible crack on the manifold, and a noticeable decrease in performance and fuel economy.

Is a cast iron or stainless steel manifold better?

It depends on your goals. Cast iron is durable and great for standard, everyday vehicles. Stainless steel is much lighter, resists rust, and can be formed into high-flow designs that are far better for performance. For any upgrade focused on power, stainless steel is the superior choice.

How does Backpressure affect my engine?

Excessive Backpressure forces the engine's pistons to work harder to push out exhaust gases. This wasted effort directly reduces the amount of power the engine can send to the wheels. Optimizing a manifold to reduce Backpressure is one of the most effective ways to improve overall Engine Performance.
